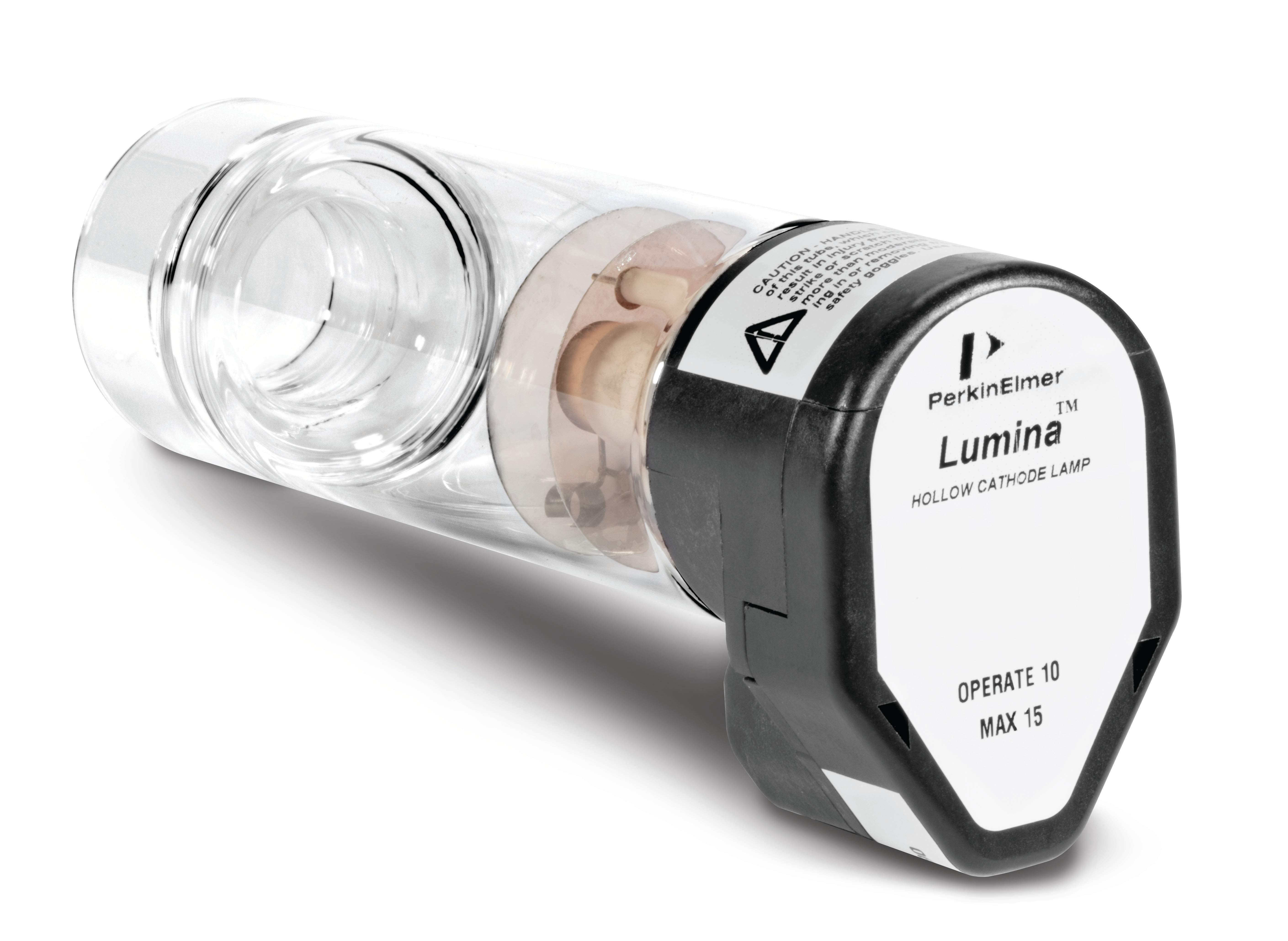

This Lumina™ multi-element hollow cathode lamp carries silver (Ag), chromium (Cr), copper (Cu) and nickel (Ni) in one cathode, so one lamp position serves all 4 elements for flame atomic absorption on the AAnalyst® 200, 300, 400, 600, 700 and 800 and PinAAcle® 500, 900F, 900H, 900T and 900Z atomic absorption spectrometers. Multi-element lamps are for flame work; they are not designed for use in a graphite furnace. PerkinElmer application notes give the analytical lines as Silver 328.07 nm, Copper 324.75 nm, Nickel 232.00 nm.
Like the single-element Lumina lamps it is a 2 in. (50 mm) coded, cableless lamp with a large internal gas volume for long life. When it is slid into the lamp mount or turret of a PinAAcle or AAnalyst™ instrument, the instrument reads the code and sets up the selected element, and on PinAAcle instruments with Syngistix™ software the lamp’s operating hours are recorded automatically. Earlier PerkinElmer AA spectrometers without code reading use it with an Intensitron® adapter cable.
The lamp is warranted to meet its intensity and absorption specifications for six months or 5,000 milliampere-hours, and to light and emit the spectra of the elements indicated for two years or 5,000 milliampere-hours, from the date of shipment.
- Single-element Lumina lamps for the same elements: Silver N3050102, Chromium N3050119, Copper N3050121, Nickel N3050152
- Other multi-element Lumina lamps: Ag/Au (N3050201), Ca/Mg (N3050202), Ca/Zn (N3050203), K/Na (N3050204), Pt/Ru (N3050205), Sn/Te (N3050206), Al/Ca/Mg (N3050207), Ca/Mg/Zn (N3050208), Cu/Fe/Ni (N3050209), Al/Cu/Fe/Ti (N3050211), Cu/Fe/Mn/Zn (N3050212), Ag/Cr/Cu/Fe/Ni (N3050213), Co/Cr/Cu/Mn/Ni (N3050214), Co/Cu/Fe/Mn/Mo (N3050215), Ag/Al/Cr/Cu/Fe/Mg (N3050216), Co/Cr/Cu/Fe/Mn/Ni (N3050217), Al/Ca/Cu/Fe/Mg/Si/Zn (N3050218)
Product Compatibility | |
Brand Name | Lumina |
Product Group | |
Technology Type |
